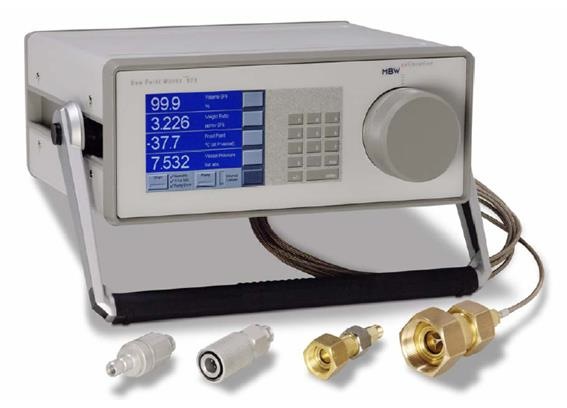

Analyser, type 973 - SF₆



State of the art advanced technology for reliable and safe measurement of SF₆–gas quality, includes a gas recovery system, includes built in test for instant calibration of the system accuracy

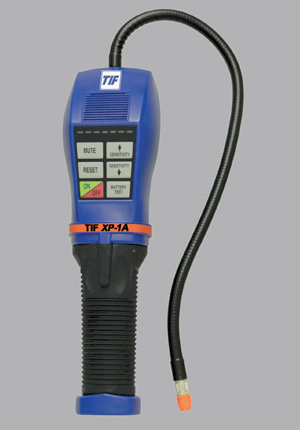

Leak Detector



• Guaranteed sensitivity: 14 g/year (0.5 oz./year)
• detects SF₆ and mixtures
• detects leakages in contaminated areas
• no limitation for continuous duty cycle
• response time: Instantaneous
• warm up time: 2 seconds
• ambient moisture: up to 90 % relative moisture
• non condensing during operation
• reset time: 1 second
• operating temperature: 0…+ 52º C
• power supply: 3V DC standard batteries (incl.)
• battery life: App. 30 hours normal use
• extra sensor tip: incl.
• robust carrying case: incl.

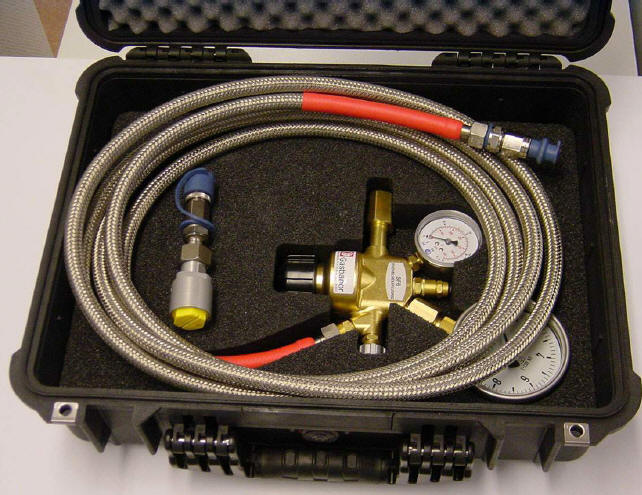

SF₆ – gas - refilling device, GRD – 08– R01, R02



• Pressure regulator for SF₆–gas
• SF₆ – cylinder connection
• Cylinder gauge 0 — 40 bar
• Working gauge 0—10 bar
• Metal clad hose DN8—5 m
• Pressure in bar
• Incl. robust carrying case

Option:

Rubber hose instead of metal clad hose
Diff. adapter w/quick connection, to DN8, DN20

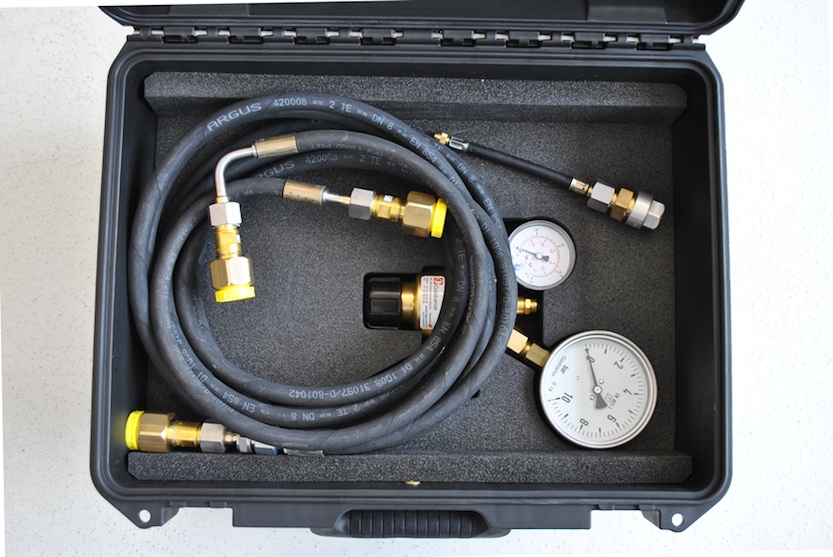

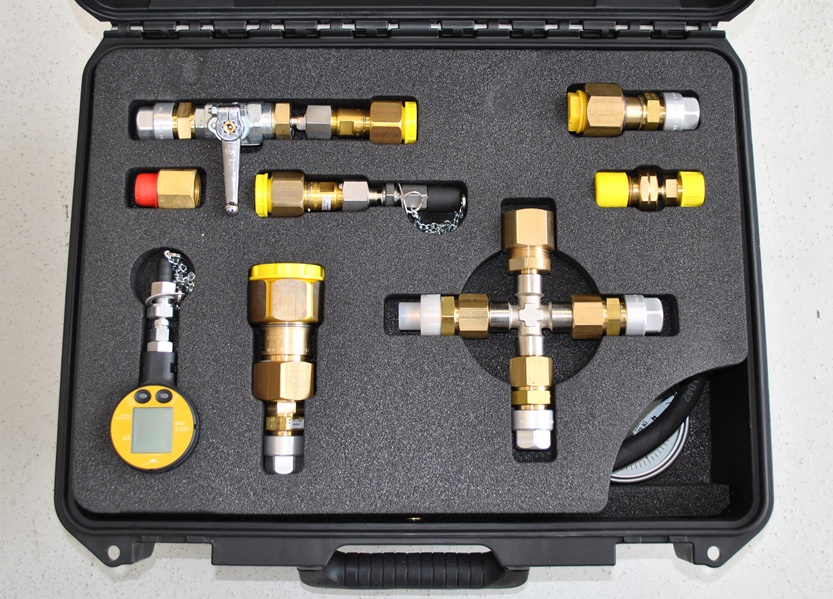

SF₆–gas- refilling device (special) GRD– S– R01



• Pressure regulator for SF₆–gasdigital manometer 0 – 10bar w/quick connection
• SF₆ - cylinder connection W21.80 x 1/14” Adapter w/quick connection to DN8
• Cylinder gauge 0 – 40bar cross w/3 x DN8, 1 x manometer connection
• Working gauge 0 – 10bar adapter DN8 to DN20
• Rubber hose DN8 – 5m, w/ DN8 adapter DN8 to DN8 w/ball valve
• Rubber hose DN8– 0,8m w/DN8 on both side adapter DN8 to ABB/ASEA
• Robust suitcase adapter DN8 to car tire valve
• American bottle connection, G5/8”
• Incl. robust carrying case

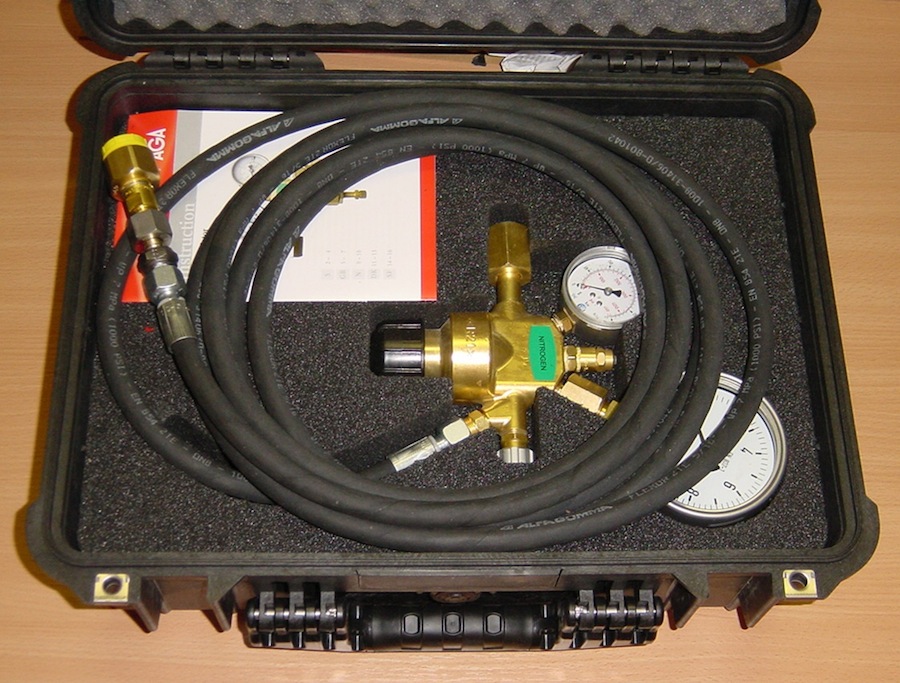

N₂ - refilling device, NRD- 08- R01



• Pressure reducer for N₂ (Nitrogen)
• N₂ – bottle connection
• Bottle manometer 0- 315 bar
• Working manometer 0- 10 bar
• Rubber hose DN8- 5 m
• Pressure in bar
• Incl. robust carrying case
• Various adapter like DN8, DN20 etc.

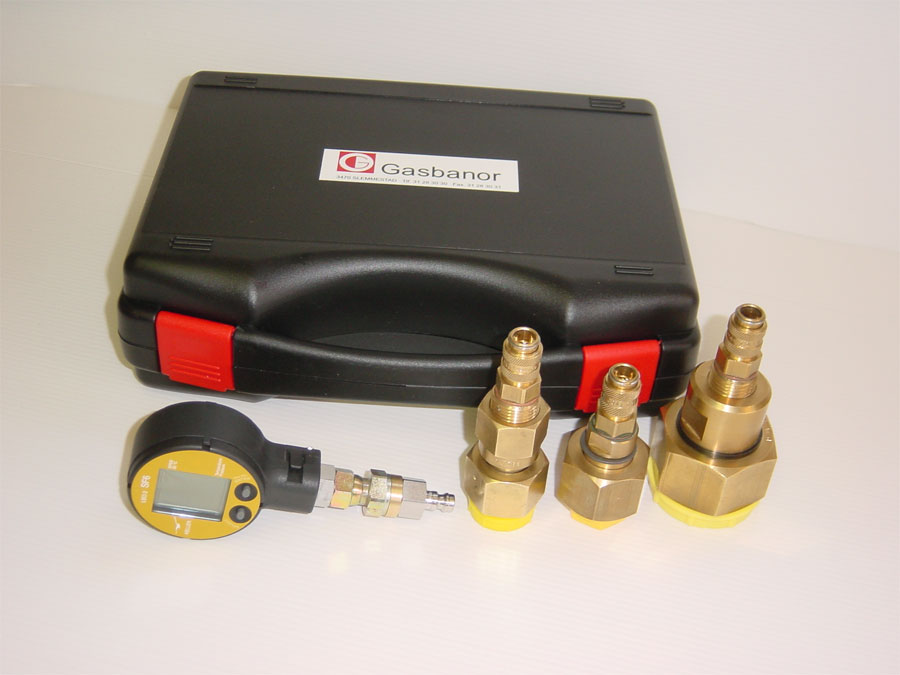

Digital Pressure Gauge



• Measuring method: Sensor
• Measuring range: 0 - 10 bar
• Display: normalized pressure at 20°C
• Measuring units: bar, mbar/hPa, kPa, MPa and PSI (can be chosen)
• Accuracy: Class 0,1
• Power supply: 3V batteries (inside)
• Warning: For low battery capacity
• Battery life: App. 1000 hours in normal measuring mode
• Connection: Quick connections
• Adapters: For different gas connections
• Incl. robust carrying case

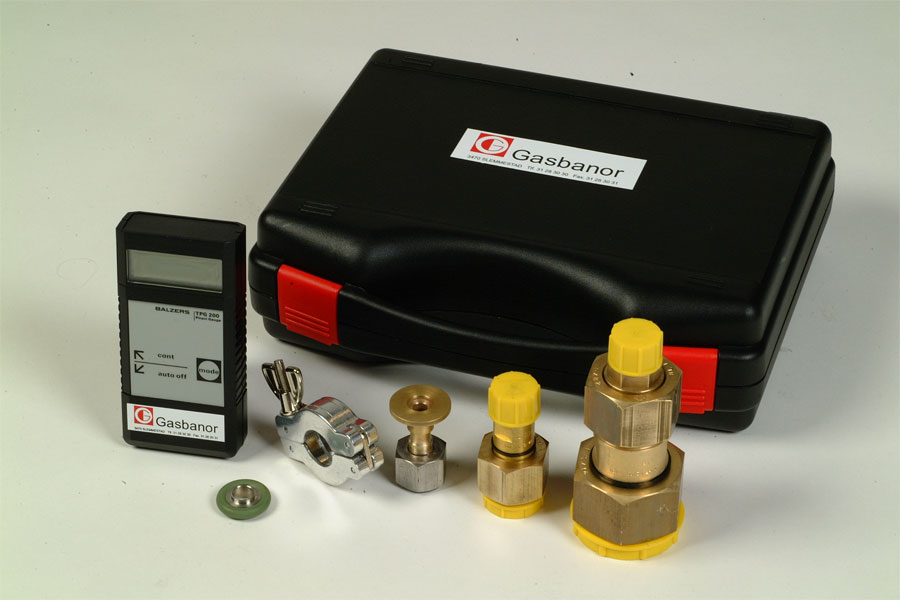

Digital Vacuum Gauge



• Measuring method: sensor (Pirani)
• Material: stainless steel, epoxy, tungsten
• Measuring range: 1000 - 5x10-4 mbar
• Accuracy (100 -1000) mbar: Factor 2
• Accuracy (10 - 100 ) mbar: 30 %
• Accuracy (5x10-4 – 10) mbar: 10 %
• Ambient temperature: +5 ... +40 °C
• Power supply: Standard 9 V battery (incl.)
• Battery lifetime: up to 100 h in normal use
• Vacuum connection: DN16KF
• Incl. robust carrying case

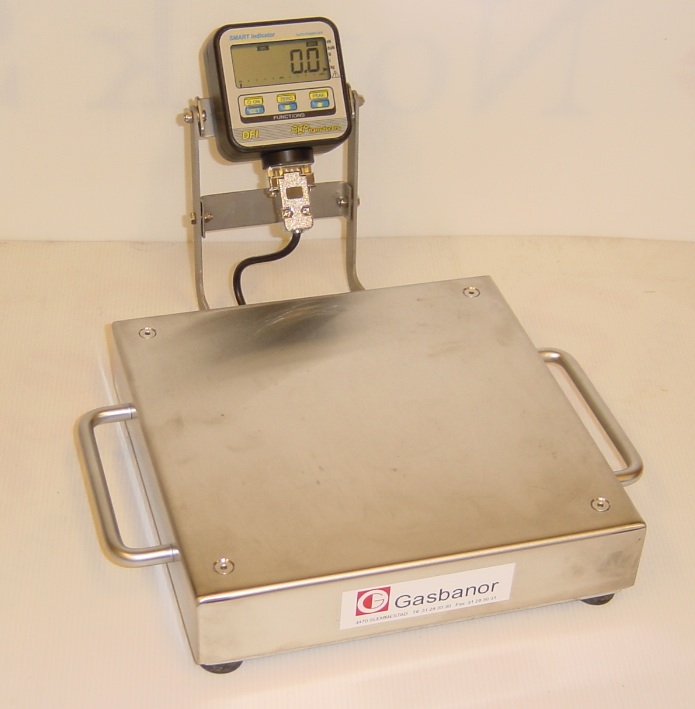

Digital Weighing Scale for SF₆ – Cylinders, Type DWS-150



• Type: digital
• Weighing cell: w/overload protection
• Measuring range: 0 - 150 kg
• Grading : 100 gram
• Accuracy: ± 0.02 %
• 0– point: by pushbutton
• Platform: 260 x 260 mm
• Display: 5 digits
• Power supply: batteries, 4 x 1,5 V, auto off



Working protection kit



The complete working protection kit contains all necessary items to exclude health hazards of the operating personnel against toxic decomposition products of SF₆

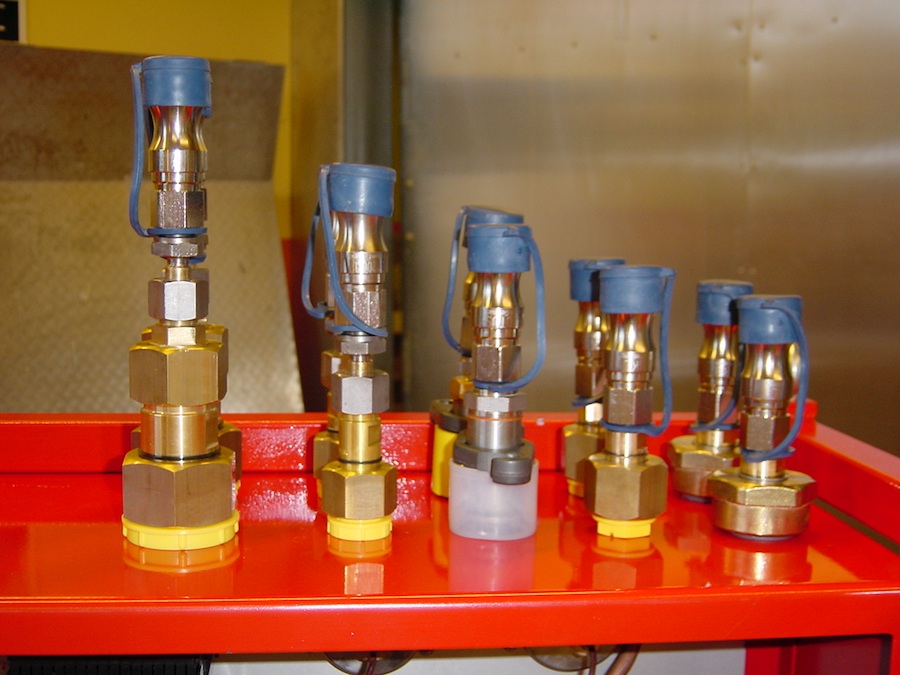

Adapter to various gas connections

Upon request

Gasbanor provides adaptation to all required gas connection standards for reliable and safe gas coupling of SF₆. Customized manufacture on demand.







Distributor

For simultaneous connection and treatment of several gas compartments (suction, evacuating, refilling).











---
